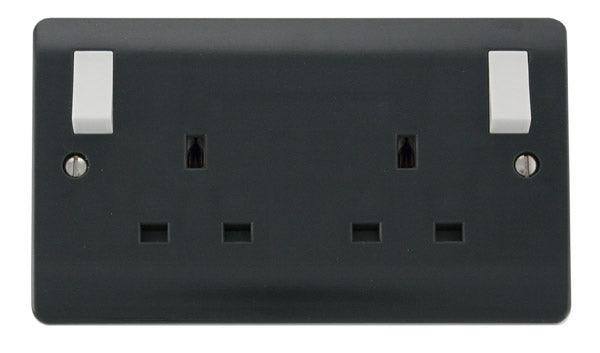

Mode Part M 250V 2G 13A DP OB SW SKT TWIN EARTH AG
CMA1836AG
Regular price
£7.47
/
No reviews
- In stock, ready to ship
- Inventory on the way
- Plate Dimensions: 86 (W) x 86 (H) x 9.5 (D) mm
- Plate Fixing Centres - Horizontal: 60.3 mm
- Style: Rounded Profile
- Finish: Anthracite Grey
- Switch Finish: Polar White
- Materials: Brass Urea Terminals, Front Plate & Rocker Switch, Brass Urea Terminals, Rear Housing, Polycarbonate Neon Lens, Brass Terminals
- Terminal Screws: Steel & Yellow Passivated, Contacts: Silver “on-lay” Copper / Brass
- Internal Busbars: Formed Pressed Brass, Earth Strap: Mild Steel
- Anti Microbial Certified: Yes
- Rated Voltage (V~) (Ue): 250, Frequency (Hz): 50
- Resistive Load Rating (A): 13
- Termination Type: Screw
- Terminal Size (mm): Ø5, Terminal Torque Value (Nm): 2
- Terminal Capacity - Solid (mm²): 3 x 2.5 or 2 x 4
- Double Pole Switch: Yes
- 3 Pin Safety Shuttered: Yes
- Twin Earth Terminals: No
- Neon Indicator: Yes, Indicator Colour: Orange
- Minimum Back Box Depth (mm): 25
- Ingress Protection: IP20
- Operational Temperature (°C): -5 to +40
- Warranty (Years): 20
- Standards: BS 1363-2
Mode Part M 250V 2G 13A DP OB SW SKT TWIN EARTH AG: Reflecting Part M1's dedication to user-centric design, this 2-gang socket offers outboard switching for enhanced convenience.
