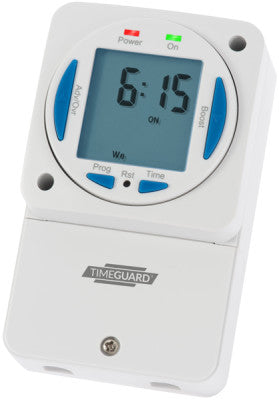

Timeguard NTT06: 24-Hour Slimline Timer Switch with Enhanced Features

• Model: NTT06 24 Hour Slimline Electronic General Purpose Timeswitch
• Display: Extra large screen with blue LED backlighting for enhanced visibility
• Indicators: Red LED for 'Mains ON' and green LED for 'Output'
• Usability: Large programme buttons for easy operation
• Override Feature: Self-cancelling override button for immediate next programme change
• Boost Function: Optional 1 & 2-hour boost button for additional control
• Time Adjustment: Automatic summer/winter time change for year-round accuracy
• Memory: Rechargeable battery back-up to retain settings
• Programmability: 4 ON/4 OFF easy-set programme periods per day
• Operating Voltage: 230V AC
• Frequency: 50Hz
• Earth Class Rating: Class I
• Operating Temperature: 0¡C to 40¡C
• Voltage Free Contacts: Normally Open, Normally Closed (Changeover) for versatile use
• Mounting Hole Centres: 90 mm for easy installation
• Energy Efficiency: Standby consumption less than 0.96W
• Dimensions: Height 120mm, Width 74mm, Depth 46mm

The NTT06 24 Hour Slimline Electronic General Purpose Timeswitch is a testament to modern control technology, offering exceptional functionality in a sleek design. The extra-large screen, backlit with blue LED, ensures clear and easy viewing of settings, while the red and green LED indicators provide instant operational feedback. This timeswitch is user-friendly, featuring large programmable buttons and a self-cancelling override button for quick adjustments to the next programmed change. The optional 1 and 2-hour boost function adds further convenience for on-demand control. Automatic adjustment for summer and winter times guarantees consistent accuracy throughout the year. With 4 ON and 4 OFF easy-set programmes per day, it allows for precise scheduling to meet various needs. The timeswitch is equipped with a rechargeable battery, ensuring that settings are maintained even during power outages. Its voltage free contacts offer both normally open and normally closed options, making it suitable for a wide range of applications. Operating at 230V AC and a frequency of 50Hz, it functions effectively within a temperature range of 0¡C to 40¡C. The slim profile, measuring 120mm in height, 74mm in width, and 46mm in depth, combined with an energy-efficient standby consumption of less than 0.96W, makes the NTT06 an ideal choice for those seeking a reliable, versatile, and aesthetically pleasing timeswitch solution.
