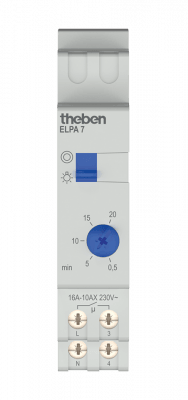

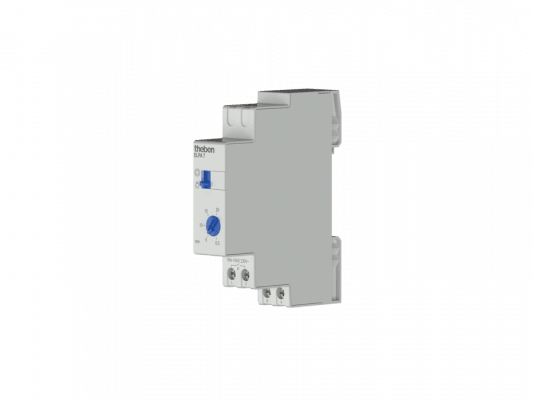

Timeguard ELPA7: Electronic Time Switch for DIN Rail Installation
ELPA7
Pairs well with
- Model: ELPA 7 Electronic Staircase Timeswitch
- Size: Slim 17.5mm width (1 module), ideal for space-saving installations
- Switching Capacity: 16A, capable of handling significant loads
- Time Range: Resettable from 0.5 min to 20 min for customized duration
- Accuracy: Electronic time delay for greater switching precision
- Convenience: Sliding switch for continuous light option
- Safety: Switch-off pre-warning feature to avoid sudden darkness
- Relay Protection: Zero-cross switching for relay-saving and handling high lamp loads
- Input: Push button with electronic overload protection
- Compatibility: Can switch up to 2300W of incandescent, 400VA fluorescent, or 140W of L.E. lighting
- Operating Voltage: 230V AC
- Installation Type: DIN Rail mounting for ease of setup
- Switch Ratings: 10 AX at 230V AC, cos _ = 0.3; 16 A at 230V AC, cos _ = 1
- LED Lamp Capacity: 55W for <2W lamps; 600W for 2-8W and >8W lamps
- Housing Material: High-temperature resistant, self-extinguishing thermoplastic
- Operating Temperature: -10¡C to 50¡C

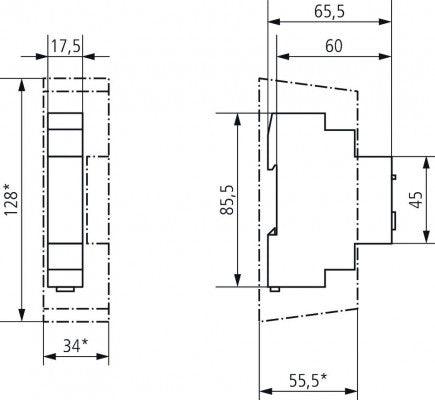

- Dimensions: Height 85.5mm, Width 17.5mm, Depth 65.5mm
The ELPA 7 Electronic Staircase Switch offers a reliable and precise solution for staircase lighting control. With its ultra-slim 17.5mm profile, it fits easily into compact spaces, making it ideal for a variety of installations. This 16A timeswitch is equipped with an adjustable time range from 0.5 to 20 minutes, allowing for tailored lighting durations. It ensures accurate timing with an electronic delay feature and offers the convenience of a sliding switch for continuous lighting. The switch-off pre-warning function enhances safety by preventing abrupt darkness. Additionally, its zero-cross switching technology is designed to save relays and support high lamp loads effectively. The ELPA 7 can control up to 2300W of incandescent, 400VA of fluorescent, or 140W of LED lighting, covering a broad range of lighting requirements. Designed for DIN rail installation, it features varied switch ratings for different LED lamp capacities and is housed in a high-temperature resistant, self-extinguishing thermoplastic material. Suitable for operation in temperatures ranging from -10¡C to 50¡C, the ELPA 7 combines durability, efficiency, and versatility, making it an excellent choice for staircase lighting and similar applications.
