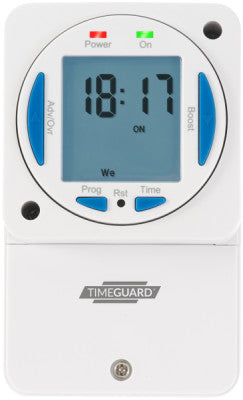

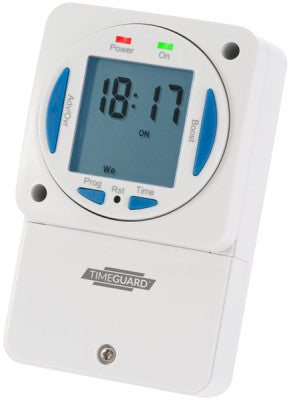

Timeguard NTT07: 7-Day Slimline Timer Switch for General Use
NTT07
Pairs well with
- Model: NTT07 7 Day Slimline Electronic General Purpose Timeswitch
- Display: Extra large screen with blue LED backlighting for enhanced visibility
- Indicators: Red LED for 'Mains ON' and green LED for 'Output'
- Usability: Large programme buttons for easy operation
- Override Feature: Self-cancelling override button for immediate next programme change
- Boost Function: Optional 1 & 2-hour boost button for additional control
- Time Adjustment: Automatic summer/winter time change for year-round accuracy
- Memory: Rechargeable memory back-up to retain settings
- Voltage Free Contacts: Normally Open, Normally Closed (Changeover) for versatile use
- Operating Voltage: 230V AC
- Frequency: 50Hz
- Earth Class Rating: Class I
- Operating Temperature: 0¡C to 40¡C
- Mounting Hole Centres: 90 mm for easy installation
- Energy Efficiency: Standby consumption less than 0.96W

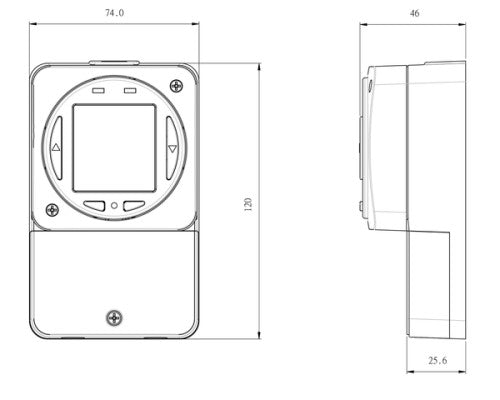

- Dimensions: Height 120mm, Width 74mm, Depth 46mm
The NTT07 7 Day Slimline Electronic General Purpose Timeswitch is a cutting-edge solution for precise time control over a seven-day period. It features an extra-large screen with blue LED backlighting, providing clear and easy-to-read displays. The red and green LEDs offer quick visual confirmation of the 'Mains ON' status and output. Its large programmable buttons make setting and adjusting programmes simple and intuitive. The self-cancelling override button allows for immediate switching to the next programmed setting, offering additional convenience. An optional 1 and 2-hour boost function provides extra flexibility for short-term requirements. This timeswitch automatically adjusts for summer and winter time changes, ensuring accuracy all year round. Equipped with voltage free contacts that can be set to normally open or closed, it caters to a variety of applications. Operating on 230V AC and 50Hz, it maintains performance within a 0¡C to 40¡C range. The NTT07's slim design, measuring 120mm in height, 74mm in width, and 46mm in depth, makes it a space-efficient option. With a standby power consumption of less than 0.96W, it is an energy-efficient choice for those seeking a versatile and reliable timeswitch for general purpose use.
Products indicated as 'Inventory On The Way' above the 'Add to Cart' button are not subject to standard shipping policies.
- Free local delivery for orders exceeding £79.99, within a 10-mile radius of our store, delivered within 3 to 5 days.
- In-store collection option is available, ranging from 1 to 7 business days.
- Additional delivery options include Next-day and Express services.
- All orders are environmentally packaged using recycled materials.
- For detailed information on shipping methods, costs, and delivery times, please refer to our delivery FAQs.
RETURNS AND EXCHANGES
- Returns require pre-authorisation. Refer to our returns page for comprehensive details.
- For specific conditions and procedures, consult our return FAQs.
SHIPPING RATES (UK ZONE 1)
- Next Day Shipping: Available Monday to Friday with a 1pm cut-off for in-stock items (excluding pre-order products). Cost: £10.95.
- 3-4 Day Economy Small Parcel Service: For orders between £0.01–£19.99 (in-stock items only, excluding pre-order products). Cost: £4.95.
- 3-5 Day Standard Shipping: For orders between £20.00–£89.99 (in-stock items only, excluding pre-order products), available Monday to Friday. Cost: £7.95.
- Free Standard Shipping: 3-5 working days for orders £89.99 and up (in-stock items only, excluding pre-order products), available Monday to Friday.
For shipping quotes to other UK zones, please contact our sales team.
What Makes Click Double Socket a Reliable Choice
Click Double Socket is built to British Standards for long-term use combining practical performance with a clean modern finish. The solid metal plate, smooth edges, and premium build make it suitable for new builds, renovations, or refurbishments where quality matters.
This switched socket belongs to our Click Mode range, known for precision-engineered fittings and dependable connections. Its 13-amp capacity supports a wide range of everyday appliances, offering stability and safety in every use.
13A 2 Gang OB DP Switched Socket
This 13A 2 gang double pole (DP) switched socket outlet ensures secure isolation and dependable operation in residential and light commercial environments. Designed for both functionality and convenience, it is made from durable materials that guarantee a strong electrical connection and smooth performance.
Key technical details include:
- Complies with BS 1363-2 for assured safety
- Compact box depth requirement of 25 mm for easy installation
- Twin earth terminals offering secure earthing options
- Operating voltage 250 V AC at 50 Hz
- Tested for resistive loads up to 13 A
- Temperature range from -5 °C to +40 °C
The socket is not antibacterial certified, and Prisma Lighting makes this clear to ensure full transparency on product specification. Every piece is quality-checked before dispatch, with a 20-year warranty as a sign of lasting performance.
Easy Installation and Practical Features
Engineered with installers in mind, this model includes screw terminations and clear markings to make fitting simple. The stainless-steel front plate and urea insert resist daily wear, ensuring that appearance and safety stay intact over time.
Additional advantages include:
- Terminal torque value of 2 Nm for secure wiring
- Terminal capacity up to 3 × 2.5 mm² or 2 × 4 mm² solid cable
- Reinforced brass terminals and silver-coated contacts for durability
- IP20 rating suitable for indoor environments
Our team at Prisma Lighting keeps these products in regular stock, allowing you to order, collect, or arrange delivery quickly. Each order is processed with care, ensuring your fittings arrive ready for installation without delay.
Modern Finishes to Match Any Interior
The Click Deco Double Socket is available in several finishes to complement any décor. Choose from:
- Satin Chrome
- Stainless Steel
- Pearl Nickel
- Black Nickel
- Matt Black
- Satin Brass
- Antique Brass
These finishes make the range a popular choice for homeowners and contractors who want visual consistency across all switches and sockets. Whether fitted in a kitchen, lounge, or workspace, each design adds subtle style and dependable performance.
At Prisma Lighting, we make it simple to place your order, with transparent VAT pricing and multiple delivery options. For further details or help with technical queries, please contact our team by phone or email. We’re here to ensure every installation is straightforward, safe, and built to last.
