BG SyncEV EVA120CT1-01 Load Management Kit CT Clamp (EVS / EVT models)
BG SyncEV Load Management Kit CT Clamp (EVS / EVT models)
BG SyncEV Load Management Kit CT Clamp (EVS / EVT models) - Prisma Lighting
BG SyncEV Load Management Kit CT Clamp (EVS / EVT models) - Prisma Lighting
BG SyncEV Load Management Kit CT Clamp (EVS / EVT models) - Prisma Lighting
BG SyncEV Load Management Kit CT Clamp (EVS / EVT models) - Prisma Lighting
BG SyncEV Load Management Kit CT Clamp (EVS / EVT models) - Prisma Lighting

BG SyncEV Load Management Kit CT Clamp (EVS / EVT models)

EVA120CT1-01

Regular price
£19.95
/

  • Low stock - 10 items left
  • Inventory on the way

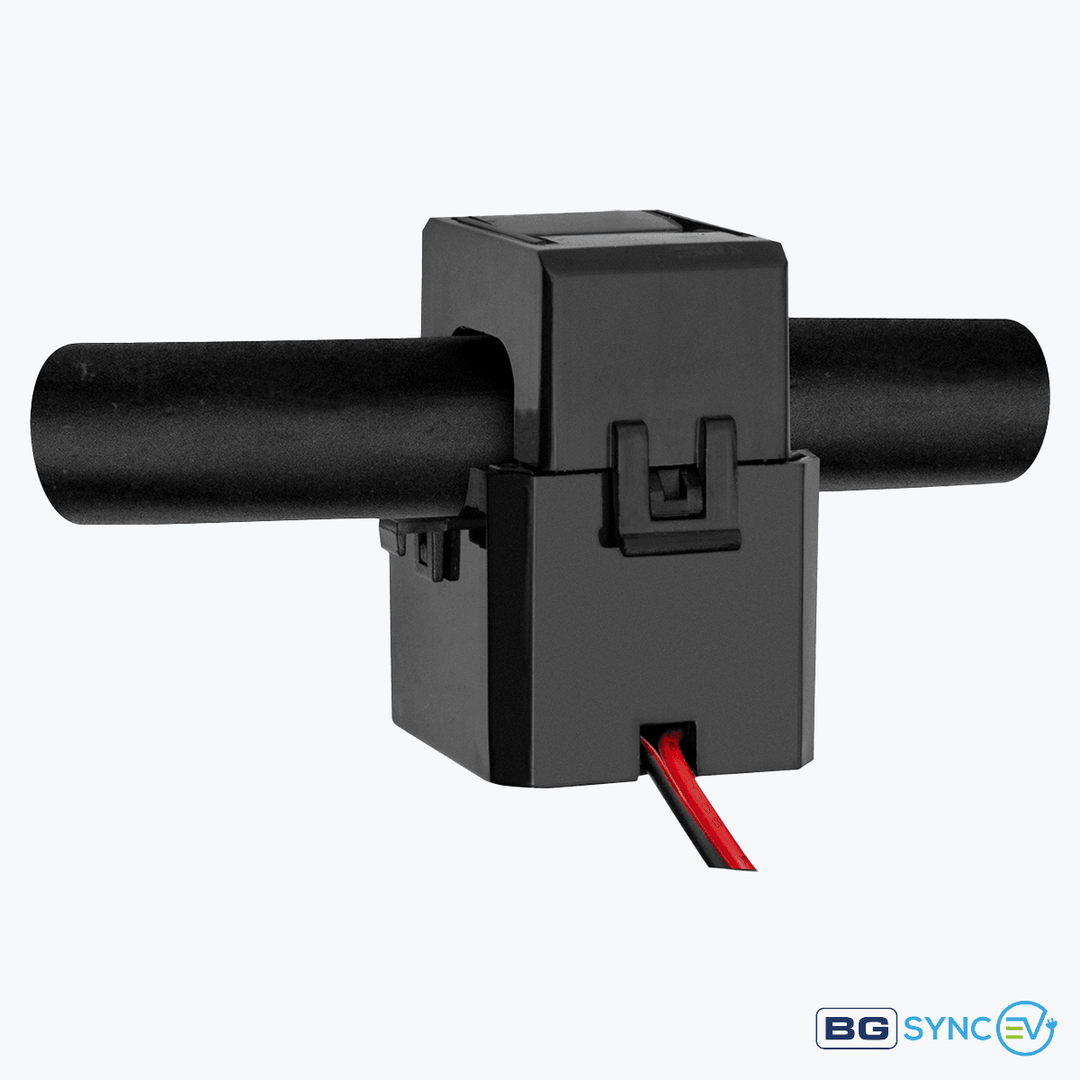

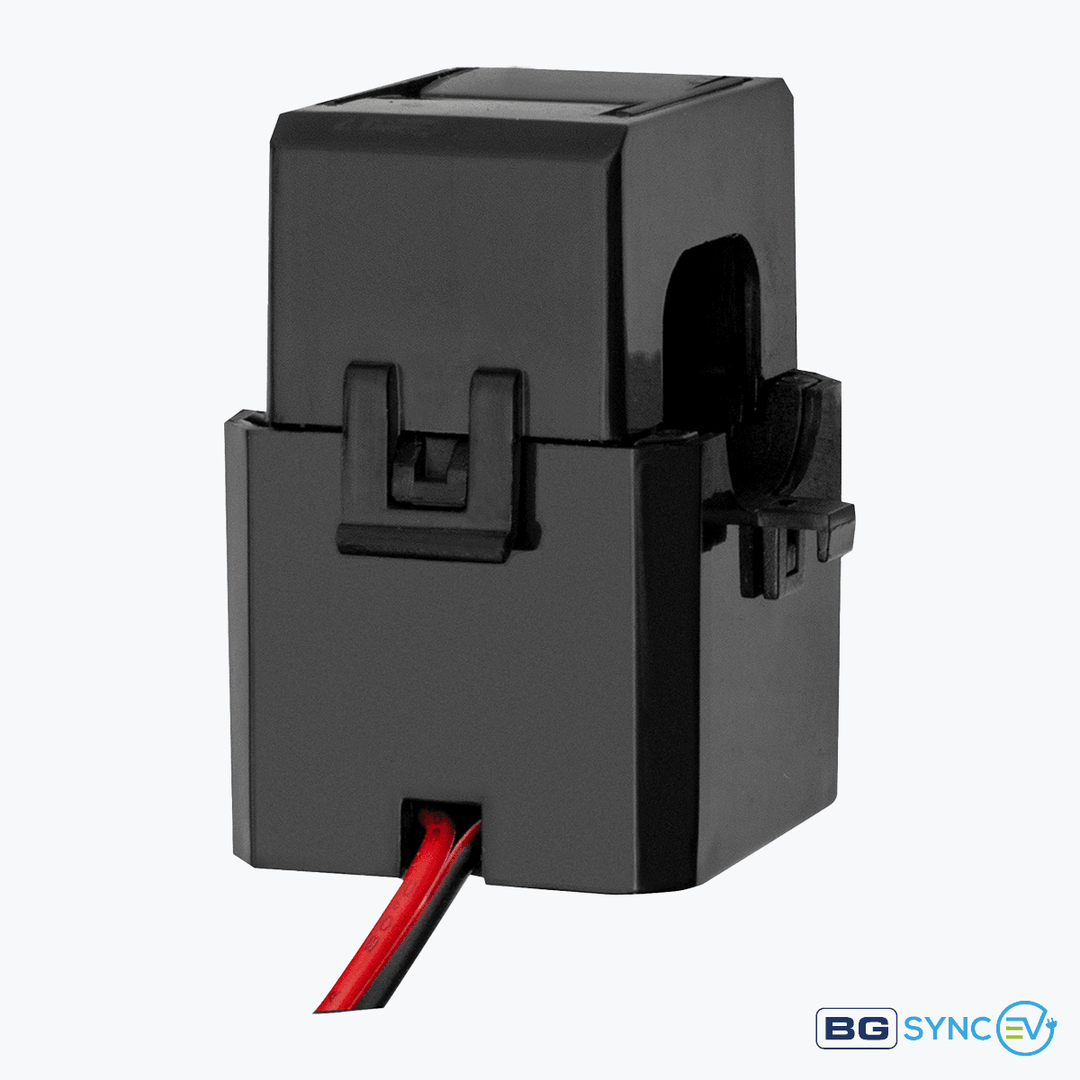

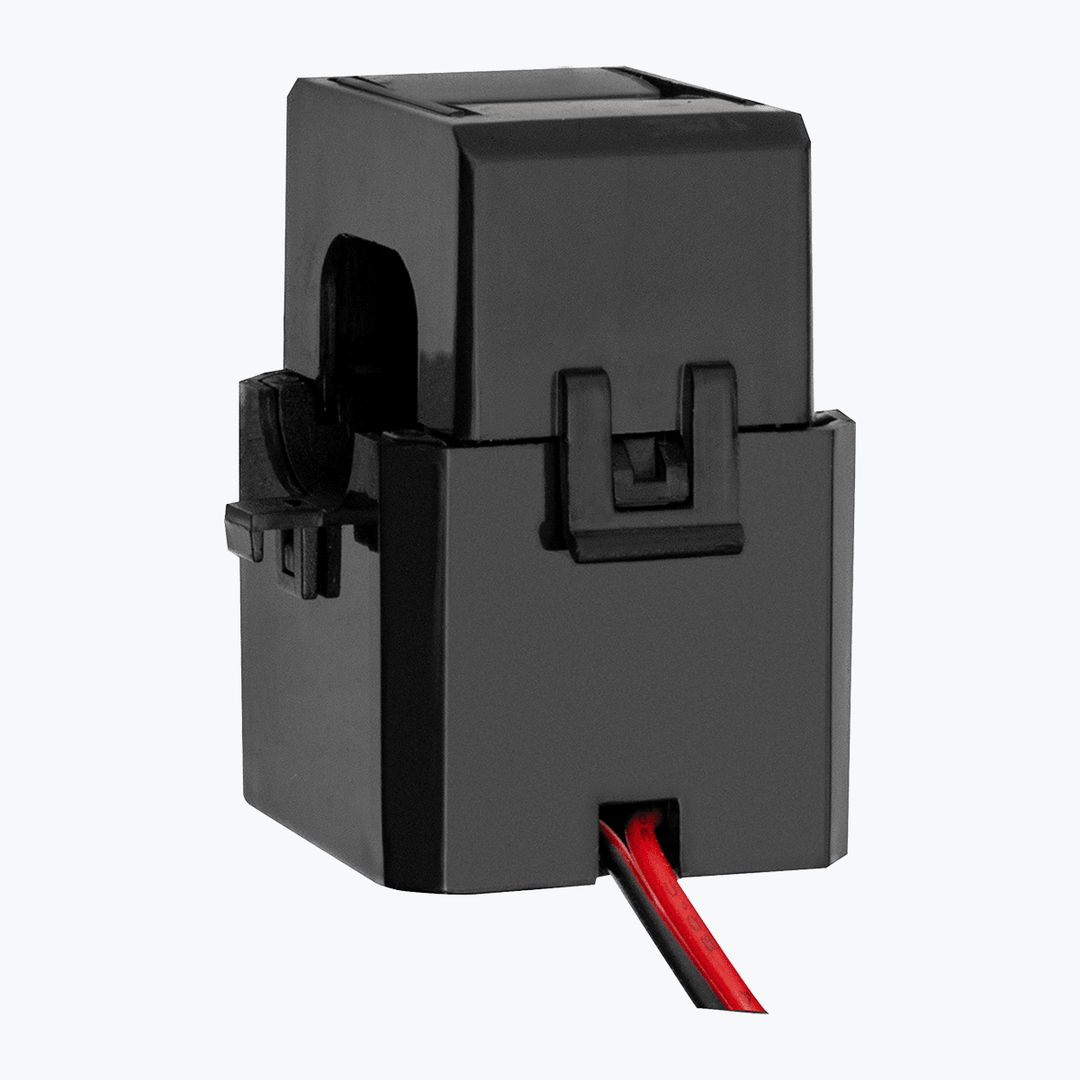

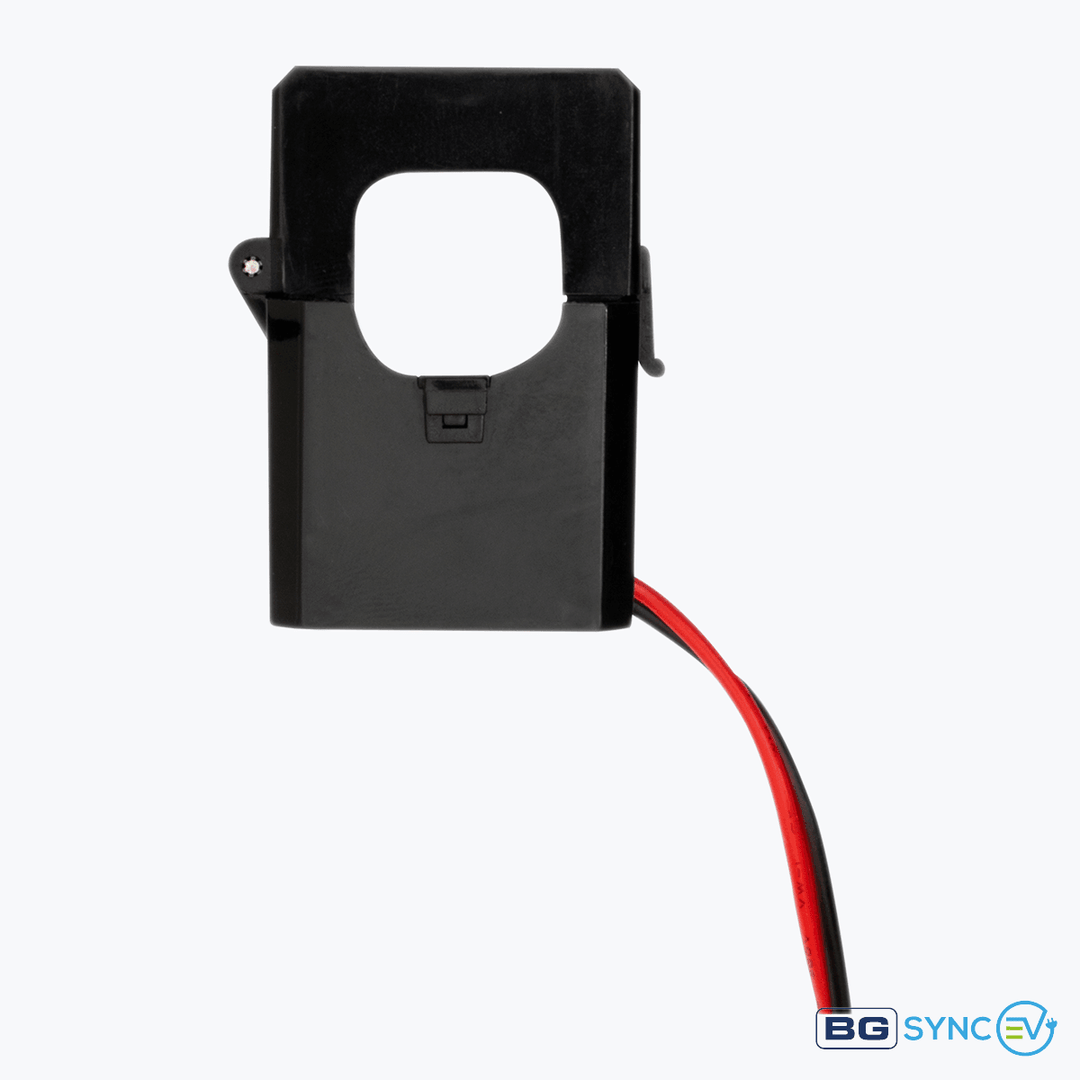

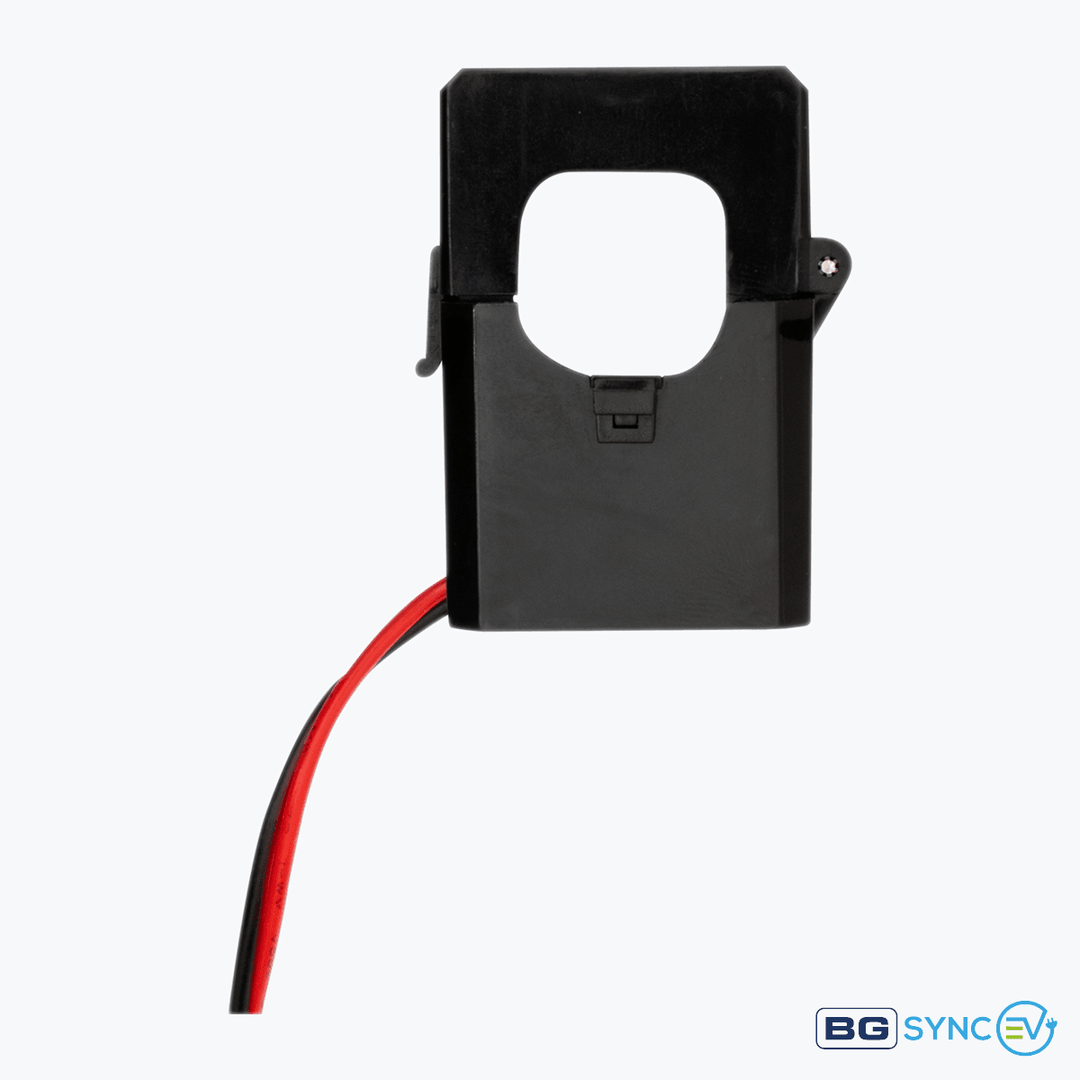

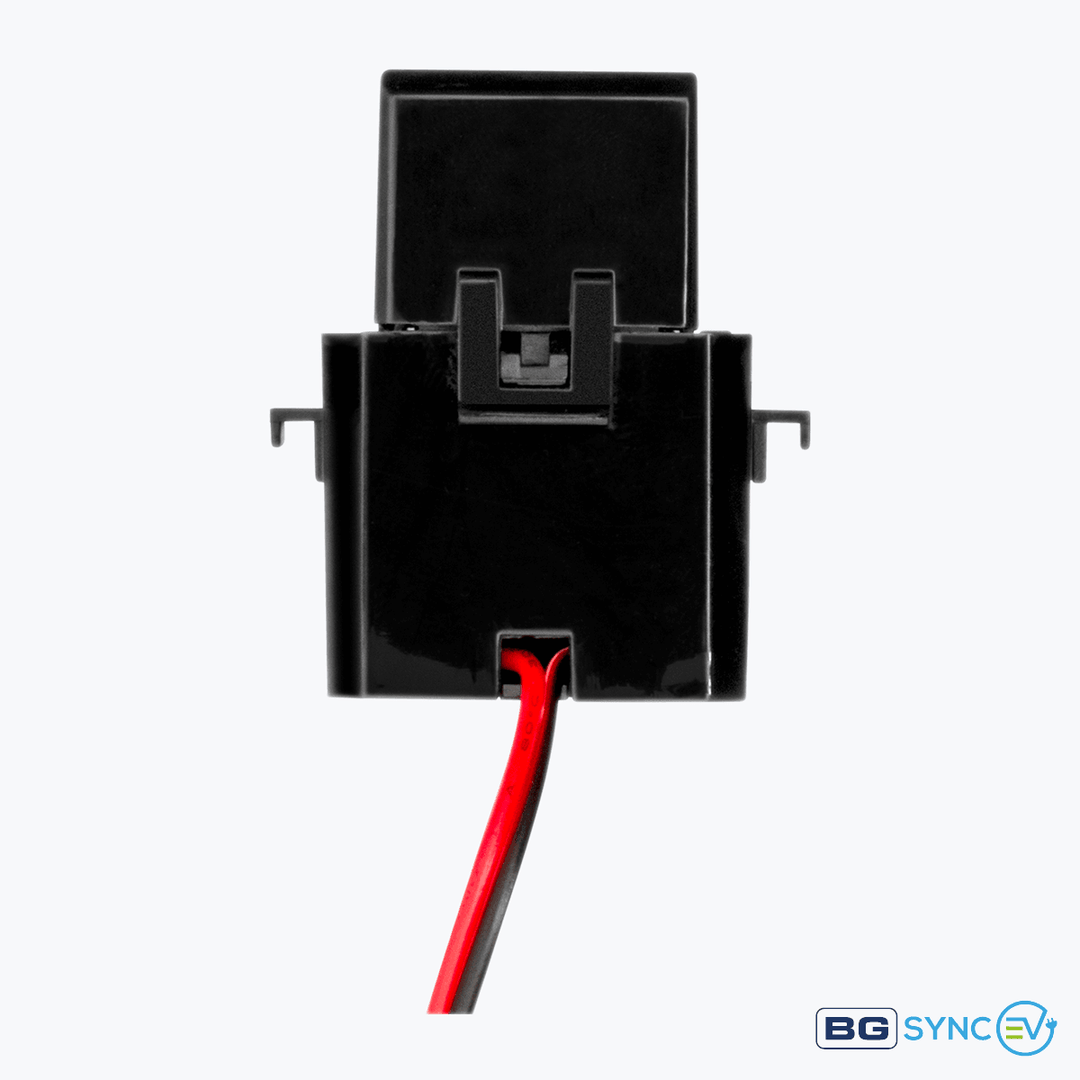

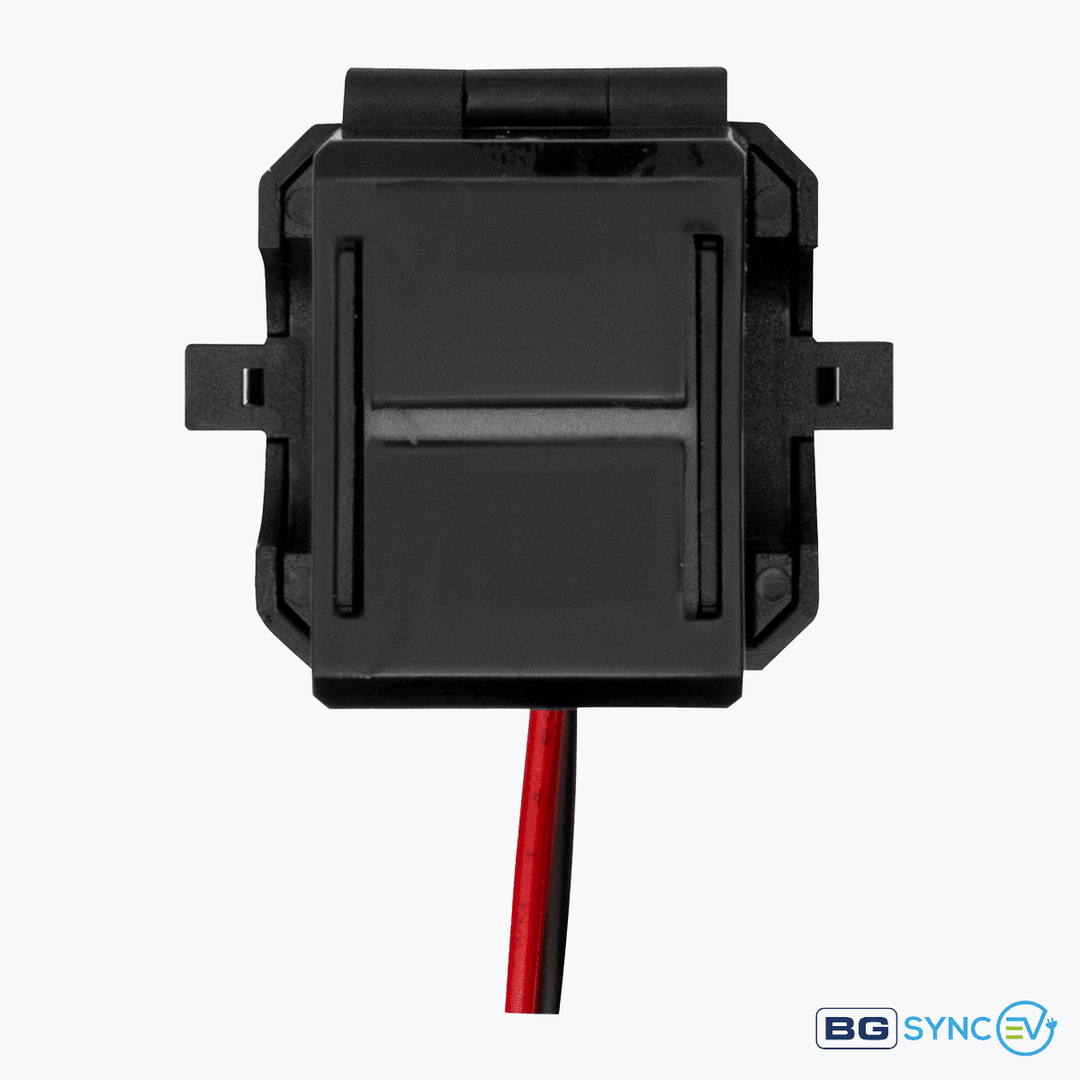

The EVA120CT1 is a load management device designed to protect the main fuse of a domestic property. It is manufactured by BG SyncEV and is suitable for use with EVS and EVT models. The device allows for dynamic load management, with a load range of 0-100A and a response time of 1.5 seconds. It must be installed with EV+ 2 Core Cable for optimal performance.

Features:

  • Made by BG SyncEV
  • Compatible with EVS and EVT models
  • Must be installed with EV+ 2 Core Cable
  • Offers complete protection for the main fuse in a domestic property

CODE : EVS7G
TYPE : Socket - Type 2 with auto-lock
COMMUNICATION : Wi-Fi
DIMENSIONS : 297 (H) X 223 (W) X 121 (D) MM
KW : 7.4KW 32A MODE 3
MIN CHARGE CURRENT : CONFIGURABLE, 6 - 32A
ELECTRICAL INPUT : 220-240V, 50-60Hz, SINGLE PHASE
COLOUR : BASE & TRIM - RAL 9005 (BLACK) BODY - RAL 7016 (GRAPHITE GREY)
CABLE MANAGEMENT : BUILT IN CABLE WRAP
PEN PROTECTION : YES, IN-BUILT EARTH DISCONNECTION
EARTH ROD : NOT REQUIRED
RCD PROTECTION : YES, 6mA DC, 30mA TYPE-A, IN-BUILT
OVERLOAD AND FAULT PROTECTION : OVER CURRENT AND FAULT PROTECTION
ELECTRICAL CLASS : CLASS 1, HOUSING CLASS 2
LOAD BALANCING : YES, OPTIONAL ACCESSORY
CONSUMER UNIT REQUIREMENTS : 40A MCB OR 30mA TYPE-A RCD (Dependent on cable type &/or route)
TERMINALS : FIRST FIX PLUG CONNECTOR
INDICATOR : RGB LED AND BUZZER
INDICATOR MODES : BLUE - STANDBY, GREEN - CHARGING, YELLOW - NO NETWORK, RED - ERROR
HOUSING : UV STABILISED POLYCARBONATE
WALL FIXING : 4 point with horizontal and vertical adjustment, supplied fixing hole template
IP RATING : IP55
IK RATING : IK10
SOC MODULE : AI ESP32-S SOC
ETHERNET : RJ45
WI-FI : 2.4Ghz 802.11 b/g/n/e/i
BLUETOOTH : YES
CONNECTION PROTOCOL: OCPP 1.6J
APP AND BACK OFFICE : SYNC EV
OPERATING TEMP : -25 TO +40°C
SOFTWARE & FIRMWARE UPGRADE : OVER-THE-AIR
WARRANTY : 3 YEARS*
STANDARDS & APPROVALS : IEC61851-1, IEC61439-7, IEC 62955, IC 61851-21-2, BS EN62196, EN301 511, EN 301 908-1/2/13, EN 301 489-3, EN 300 330, EMC COMPLIANT, CE, UKCA, DEKRA CERTIFIED
SUPPLIED ACCESSORIES : 5x base fixing caps, 5x assembly lid bolts, 1x blanking plug and 1x 25mm compression gland, user-side connector, cord grip and 2x cord grip assembly screws
ADDITIONAL : BUILT-IN SPIRIT LEVEL
