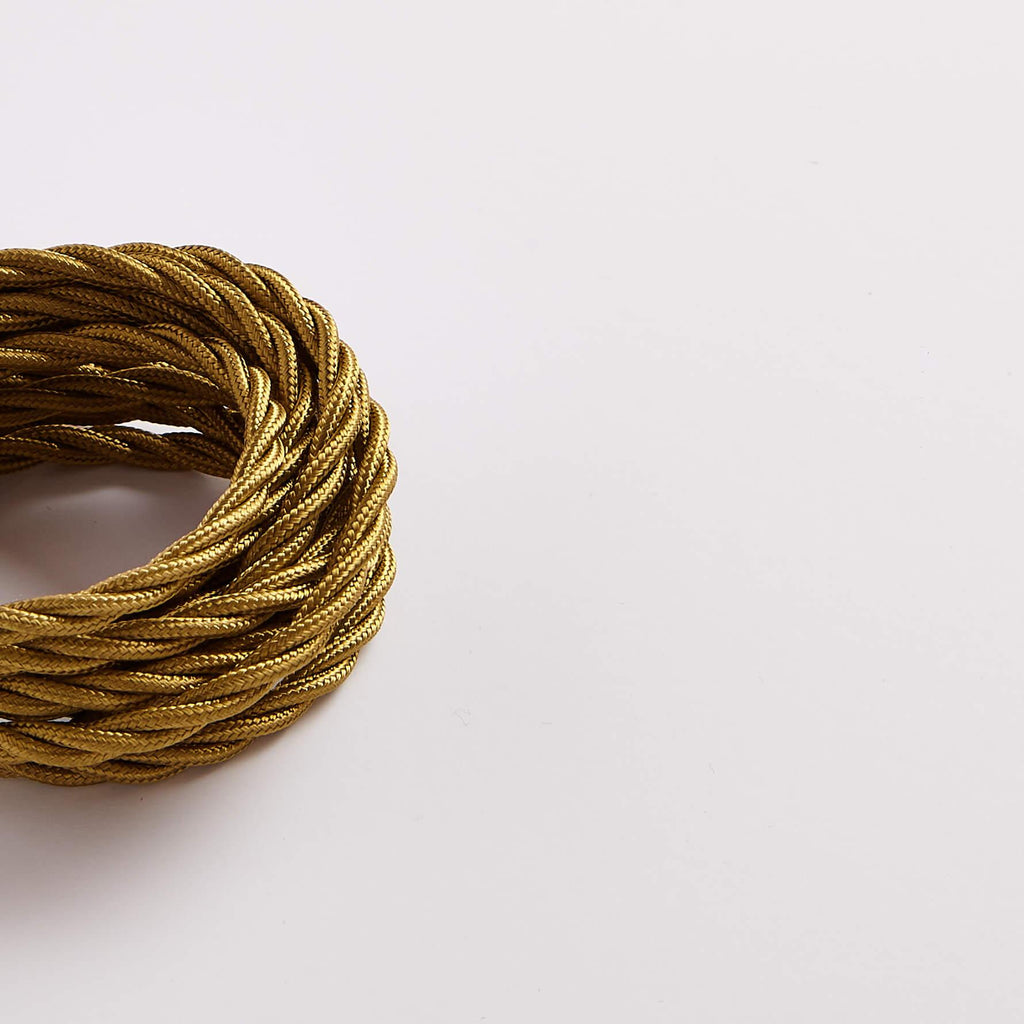

Prisma Nugget 3 Core 0.5mm Twisted Cable (Sold by the Metre)
  • Availability: in stock Many in stock Out of stock Non stock item, delivery usually within 1-2 weeks.

Prisma Nugget 3 Core 0.5mm Twisted Cable (Sold by the Metre)

£2.95
£5.90
VAT included.
    DESCRIPTION

    Decorative triple twisted, textile braided, double insulated PVC flex designed for use on pendants, wall and ceiling light fittings. This product is a 3 core 0.5 mm2 twisted PVC cable, suitable for Class I fittings.

    Available in over 10 colours, this decorative flex can be matched to all of your design needs.

    Tech Specs

    Voltage Rating (Uo/U): 300/300 V
    Test Voltage (Uo/U): 2000 V
    Temperature Range: -20 °C to +70 °C
    Short Circuit Temperature: 160 °C
    Minimum Bending Radius: 10 x Overall Diameter
    Conductor Size: 3 x 0.5 mm2
    Conductor Stranding: 16 x 0.193 mm
    Electrical Resistance : ≤ 39.0 [Ω/km]
    Insulation Thickness: ≥ 0.50 mm
    Outer Diameter: 6.1 ± 0.2 mm
    Jacket Thickness: ≥ 0.60 mm



    Cable Standards

    EN 50525-2-11
    Low Voltage European Directive No. 2014/35/UE.
    IMQ-HAR approval No. A0643.

    Stranding of Conductor
    Class 5 flexible electrolytic bare copper conductor conforming to BS/IEC 60228
    standard.

    Insulation:
    TI2 type PVC compound complying with EN 50363-3 standard.

    Cable Assembly:
    The cores are twisted together.

    Core Identification:
    In compliance with requirements of HD 308 S2 Standard.
    3 Core: Brown, Blue and Green/Yellow

    Outer Sheath:
    TM2 type PVC compound
