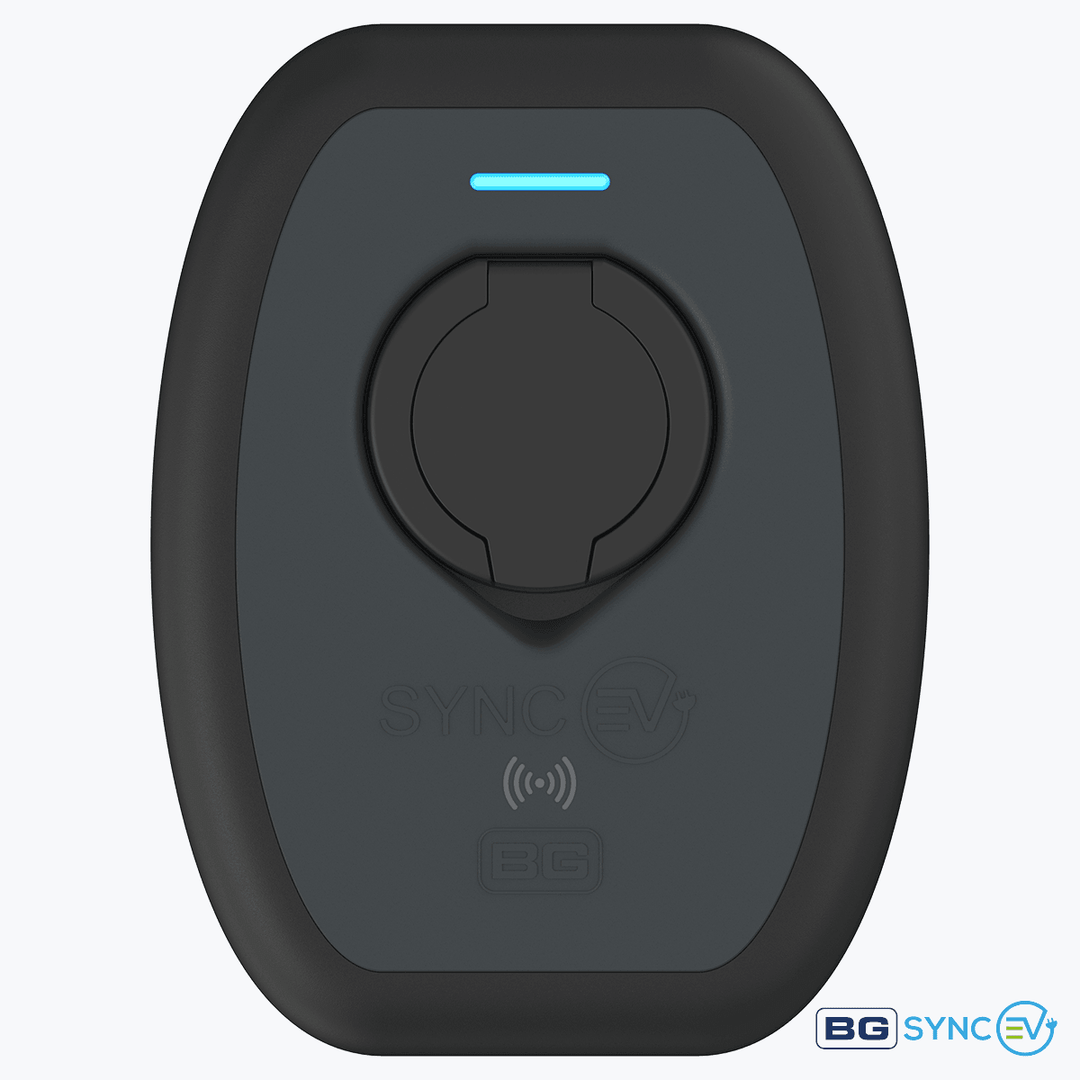

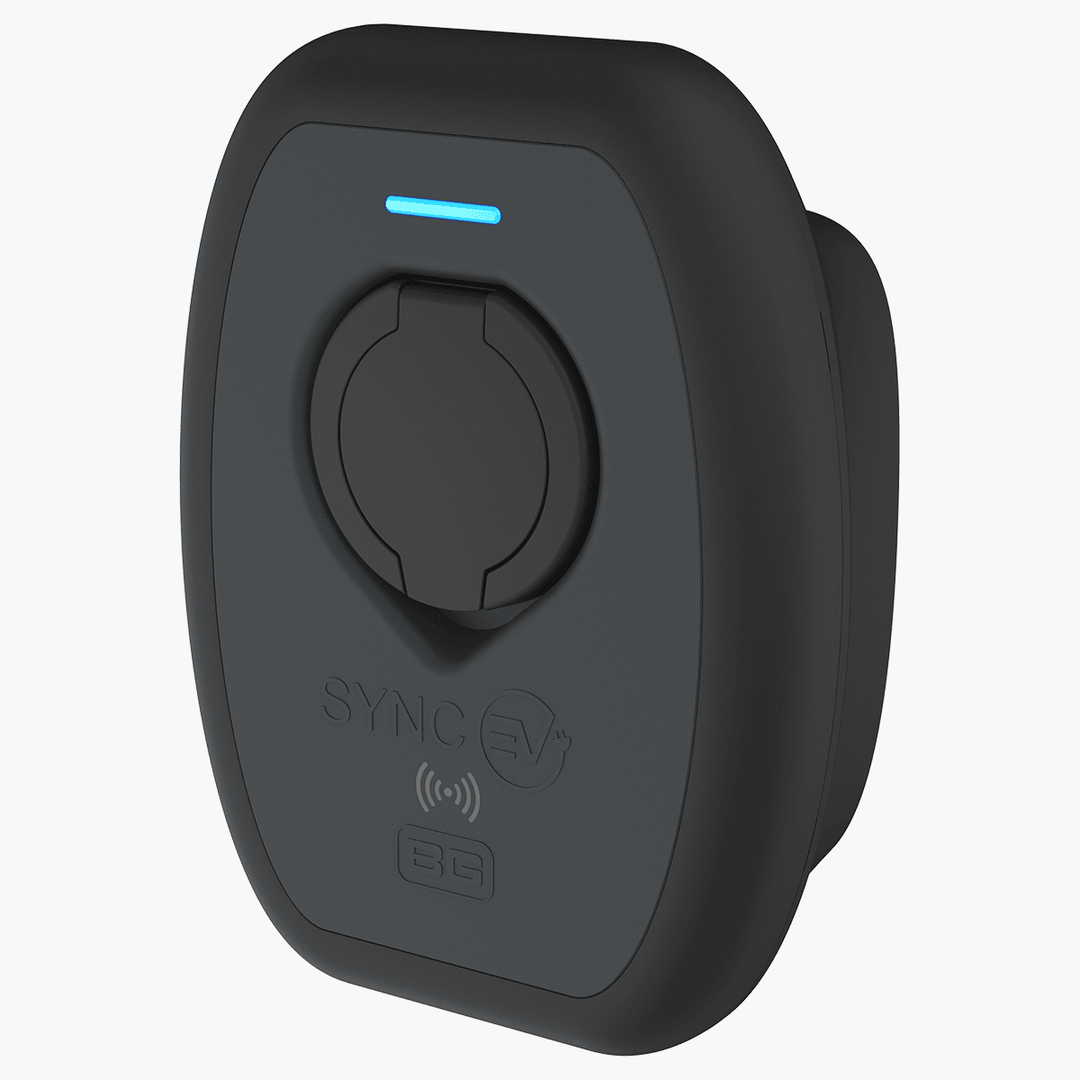

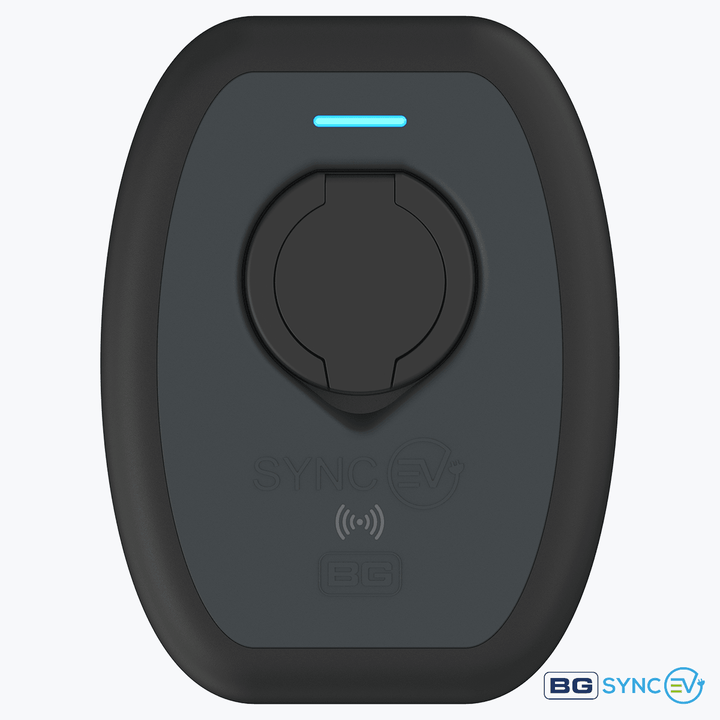

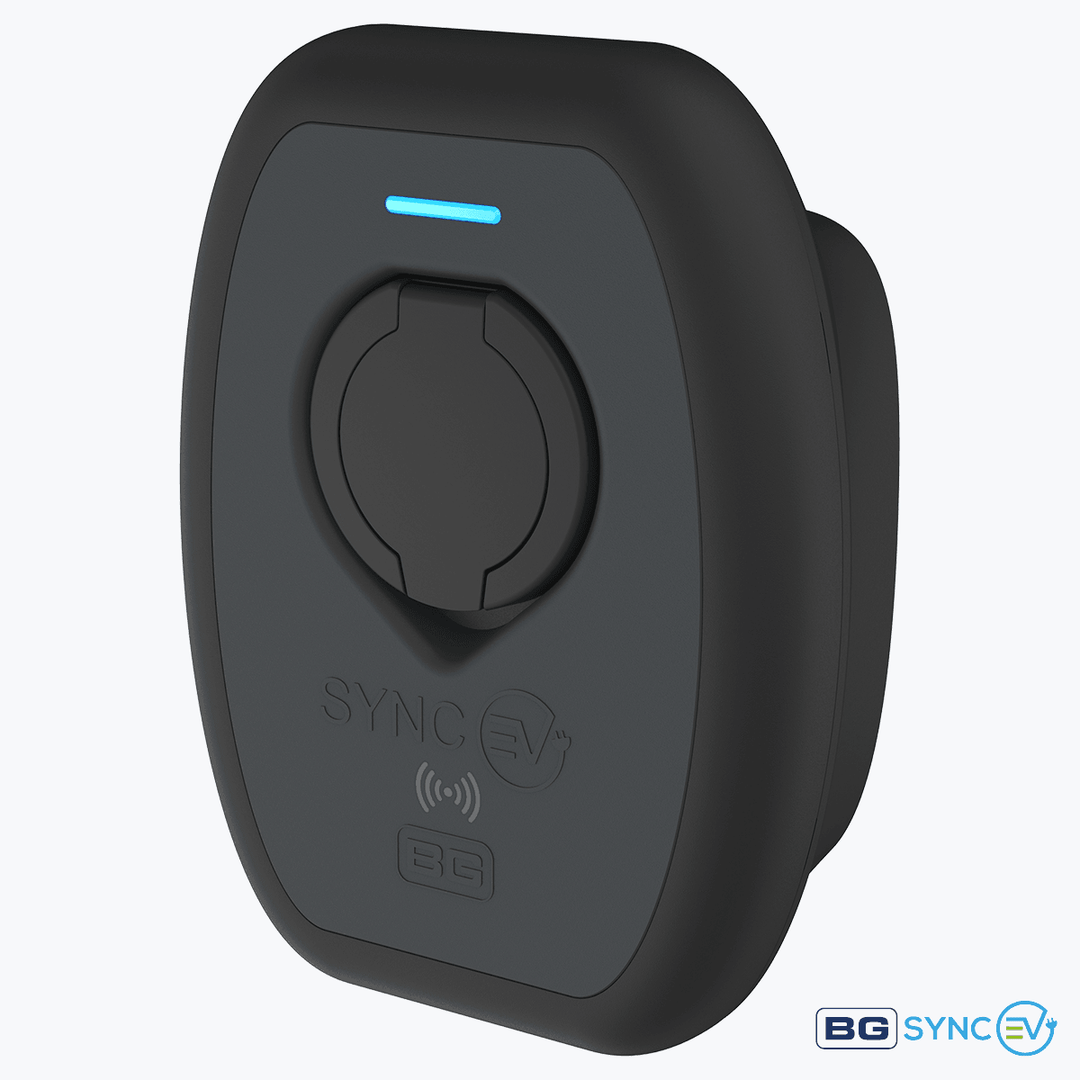

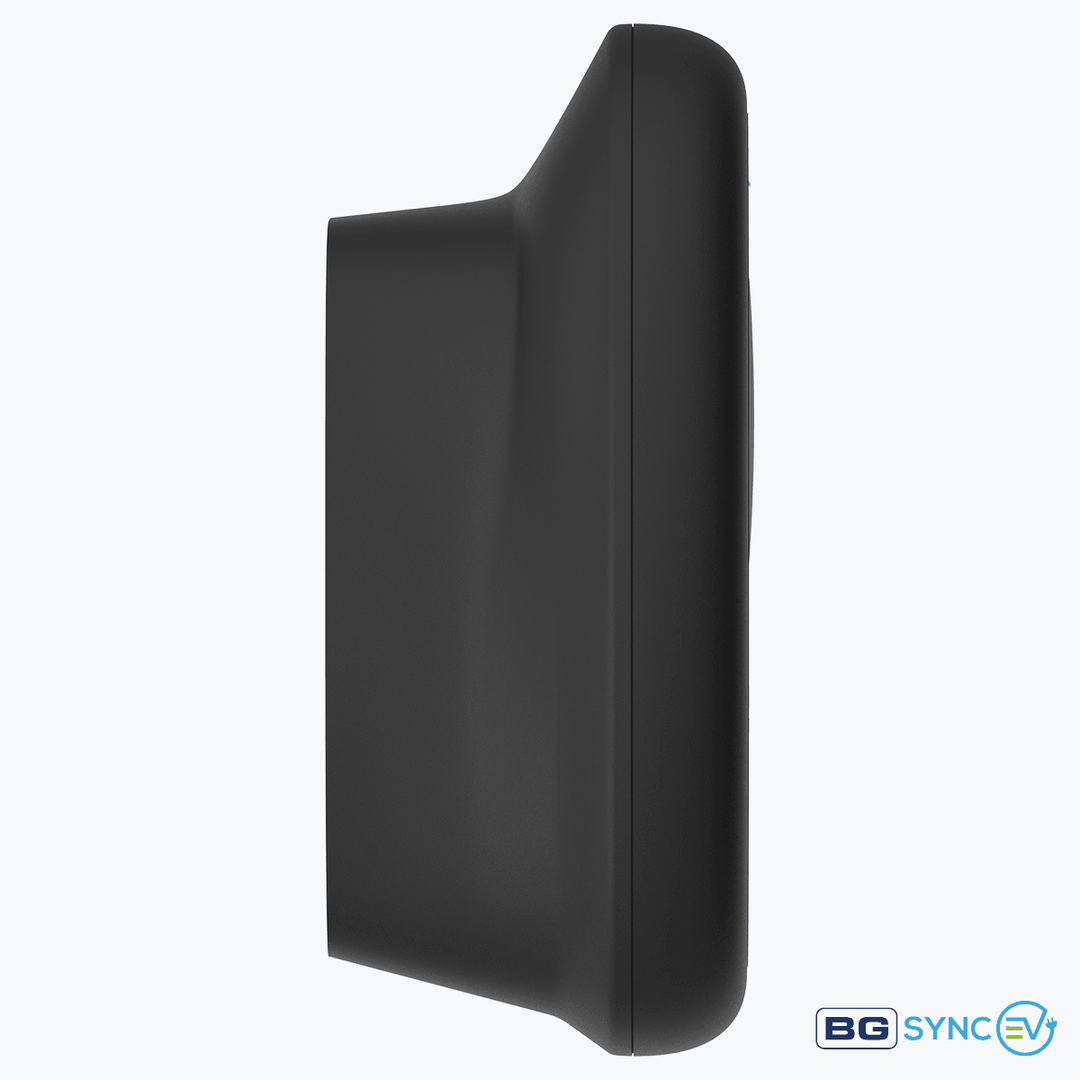

BG SyncEV socketed 7.4kW wall charger with WiFi, 4G and RFID and Smart
EVS7GGR-01
- In stock, ready to ship
- Inventory on the way
The BG SyncEV 7.4kW wall charger is a top-of-the-line charging solution for electric vehicles. Its socket features an auto-lock function for added security, and it comes equipped with WiFi, 4G, RFID, and Smart! functionality for convenience. This charger is easy to install, with UK-based technical support available for any issues. It is also backed by a 3-year warranty and has been certified by Dekra, a leading organization in product testing and certification. Upgrade your EV charging experience with the BG SyncEV wall charger.
Is it necessary to use a CT Clamp?
Since most modern properties have high load demands and the installation of electric vehicles is becoming increasingly popular, it is highly recommended that the EV charger be connected to the incoming electrical supply using a CT Clamp. Due to BG SyncEV dynamic load balancing technology, the charger will only use the available load when it is free during the charging process, thus preventing the maximum demand from exceeding the fuse size incoming into the property.
Features:
-
RFID functionality enables use of your charger without using the app - simply swipe your card to start or stop charging
-
Wifi connectivity with 4G - free lifetime software updates over-the-air
-
Full Smart! functionality - OCPP 1.6J connectivity
-
Dynamic charging - up to 7.4 kW
-
No earth rod required - integrated open PEN conductor protection
-
Safe - integrated earth fault protection (RCD) + PEN protection system
-
Type 2 socket with auto-lock
-
3-year homeowner warranty*
| CODE : | EVS7GGR |
| TYPE : | Socket - Type 2 with auto-lock |
| COMMUNICATION : | Wi-Fi, 4G, RFID |
| DIMENSIONS : | 297 (H) X 223 (W) X 121 (D) MM |
| KW : | 7.4KW 32A MODE 3 |
| MIN CHARGE CURRENT : | CONFIGURABLE, 6 - 32A |
| ELECTRICAL INPUT : | 220-240V, 50-60Hz, SINGLE PHASE |
| COLOUR : | BASE & TRIM - RAL 9005 (BLACK) BODY - RAL 7016 (GRAPHITE GREY) |
| CABLE MANAGEMENT : | BUILT IN CABLE WRAP |
| PEN PROTECTION : | YES, IN-BUILT EARTH DISCONNECTION |
| EARTH ROD : | NOT REQUIRED |
| RCD PROTECTION : | YES, 6mA DC, 30mA TYPE-A, IN-BUILT |
| OVERLOAD AND FAULT PROTECTION : | OVER CURRENT AND FAULT PROTECTION |
| ELECTRICAL CLASS : | CLASS 1, HOUSING CLASS 2 |
| LOAD BALANCING : | YES, OPTIONAL ACCESSORY |
| CONSUMER UNIT REQUIREMENTS : | 40A MCB OR 30mA TYPE-A RCD (Dependent on cable type &/or route) |
| TERMINALS : | FIRST FIX PLUG CONNECTOR |
| INDICATOR : | RGB LED AND BUZZER |
| INDICATOR MODES : | BLUE - STANDBY, GREEN - CHARGING, YELLOW - NO NETWORK, RED - ERROR |
| HOUSING : | UV STABILISED POLYCARBONATE |

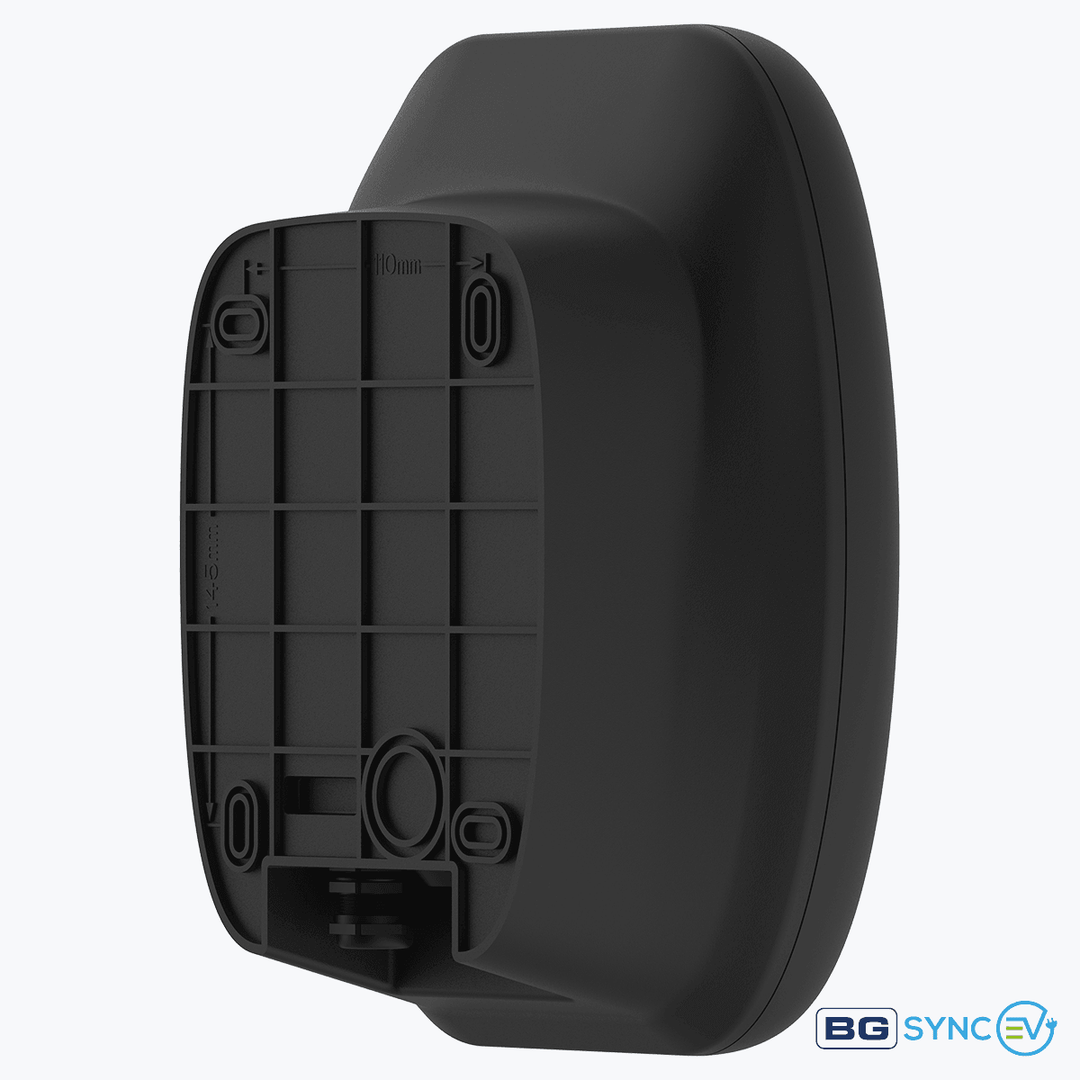

| WALL FIXING : | 4 point with horizontal and vertical adjustment, supplied fixing hole template |
| IP RATING : | IP55 |
| IK RATING : | IK10 |
| SOC MODULE : | AI ESP32-S SOC |
| ETHERNET : | RJ45 |
| WI-FI : | 2.4Ghz 802.11 b/g/n/e/i |
| BLUETOOTH : | YES |
| CONNECTION PROTOCOL: | OCPP 1.6J |
| APP AND BACK OFFICE : | SYNC EV |
| OPERATING TEMP : | -25 TO +40°C |
| SOFTWARE & FIRMWARE UPGRADE : | OVER-THE-AIR |
| WARRANTY : | 3 YEARS |
| STANDARDS & APPROVALS : | IEC61851-1, IEC61439-7, IEC 62955, IC 61851-21-2, BS EN62196, EN301 511, EN 301 908-1/2/13, EN 301 489-3, EN 300 330, EMC COMPLIANT, CE, UKCA, DEKRA CERTIFIED |
| SUPPLIED ACCESSORIES : | 5x base fixing caps, 5x assembly lid bolts, 1x blanking plug and 1x 25mm compression gland, user-side connector, cord grip and 2x cord grip assembly screws |
| ADDITIONAL : | BUILT-IN SPIRIT LEVEL |
